Radium Fuel Level Sender Accessories

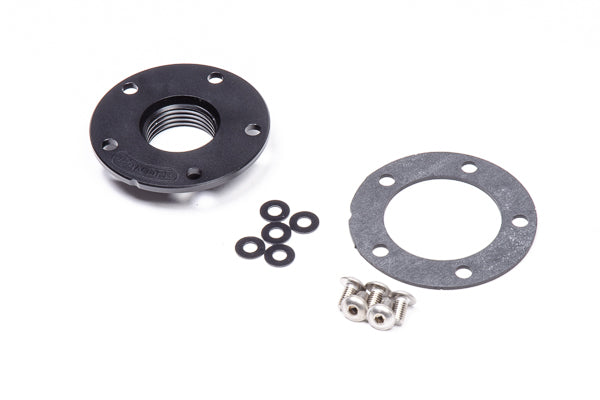

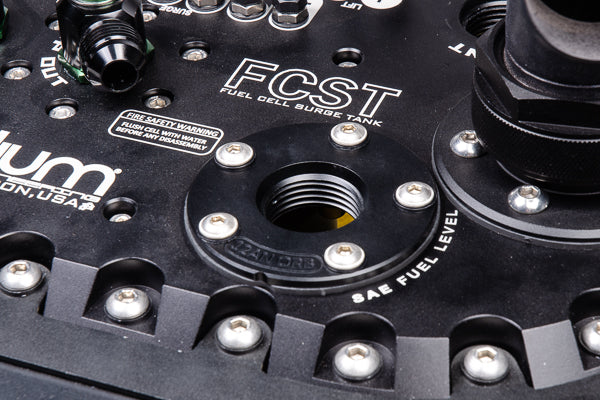

20-0439 12AN ORB to 5-Bolt SAE Adapter
When a level sender is not used, this adapter can be used to increase venting for custom installations. It converts the fuel level flange to a large 12AN ORB female port.

NOTE: a fuel level sender cannot be used with this adapter in place.

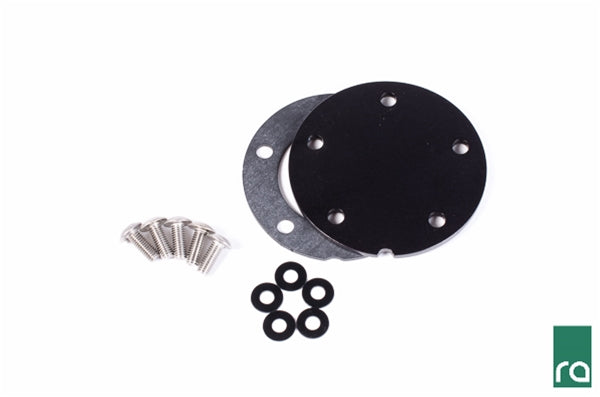

20-0146 Fuel Level Sender Block-Off
This block-off plate kit is used when the 5-bolt SAE flanged fuel level sensor is not used. This is extensively used for customers with the Radium Fuel Cell Surge Tank. NOTE: Radium 20-049X-XX FCST does not require the sealing washers.

Includes:
-Anodized 1/8" Aluminum Blank Plate
-5 Bolt Sending Unit FKM Gasket
-Stainless Steel 10-32 Threaded Bolts
-Nylon Sealing Washers

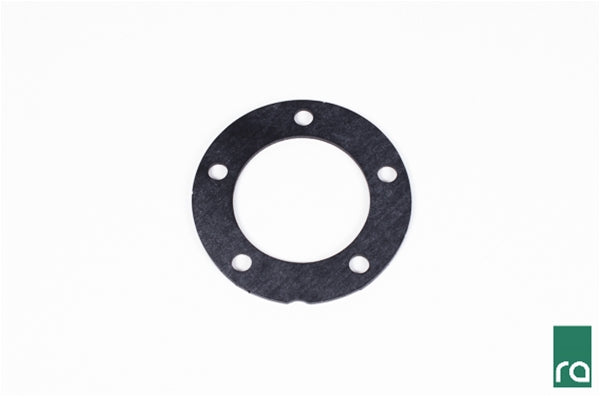

18-0020 Gasket, 5-Bolt Fuel Level Sender

This 5-bolt SAE pattern gasket is used for many fuel cell level senders. The 1/16" thick material is a premium quality variation of FKM.
