Radium Engineering Single Universal Catch Can Kit

INSTALLATION INSTRUCTIONS

Catch cans are sold without fittings. Compatible 10AN ORB adapter fittings can be found HERE.

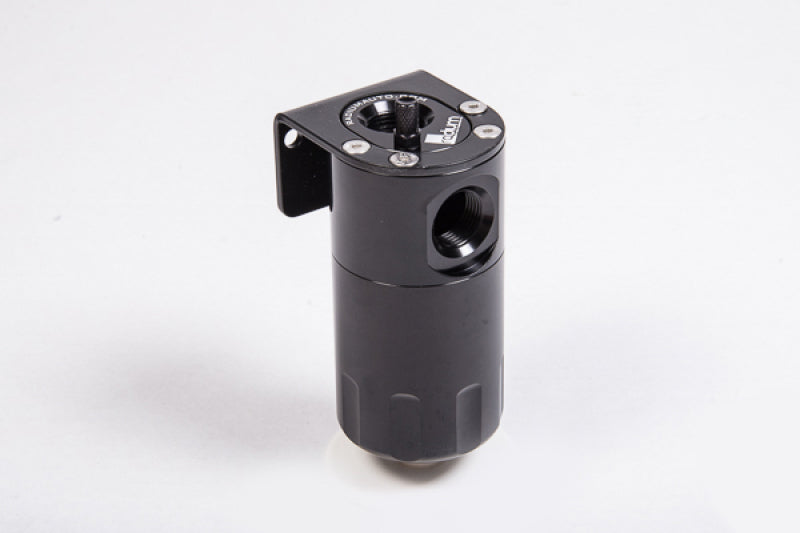

This universal catch can is the same as used in Radium application-specific catch can kits. It can be used in any vehicle with the proper hose and fittings. A universal mounting bracket is included.

BENEFITS

-Effectively raises octane and increases engine performance with cleaner inlet air
-Prevents oil buildup in the intake, intercooler, throttle body, etc.
-Excessive oil collection can be an indicator of a damaged engine
-Lowers hydrocarbon emissions

FEATURES

-6061 Billet Aluminum O-Ring Sealed Design
-Integrated Aluminum Baffle for Oil Condensing
-Reusable Stainless Steel Air/Oil Separating Media
-Main Ports: 7/8"-14 Female Threads (-10AN ORB)
-Anodized Aluminum Laser Cut Mounting Bracket
-O-Ring Sealed -4AN Drain Plug
-Stainless Steel Mounting Hardware
-Safe for Pressurized Applications
-Anodized Aluminum Oil Dipstick

DIMENSIONS

-Capacity: 8 fluid ounces
-Height (without fittings): 5 inches
-Outside Diameter: 2.45 inches

NOTES

1. The lower half of the body simply unscrews for draining.
2. The integrated dipstick unscrews for a quick way to check oil level.
3. Some engines may require multiple catch cans depending on the PCV system design.
4. Catch cans are sold without fittings.
5. Catch cans are NOT designed to be used with aftermarket crankcase vacuum pumps.

OPTIONAL

Petcock Drain Kit
-4AN ORB Aluminum Barb
-Nylon ¼” Barb Mini Ball Valve
-PCV Compliant Rubber Hose
