Lifeline's Zero 2020 FIA 3 Liter Steel Manual System

Ground Shipping Only. Pressurized bottles cannot be shipped via air.

Smaller, lighter and more powerful then previous models, Lifeline's Zero 2020 ABF Fire System utilizes a water-based ABF foam that absorbs heat faster for greater knock down ability. Featuring a 5 misting nozzle design for a less complex installation, the Zero 2020 strategically covers the engine bay with 3 nozzles and 2 for the cockpit. Passing FIA's latest Technical List 16 standard, the smaller 3 Liter bottle (generally accepted as a 5 lb system equivalent), the system includes 8mm delivery tubes for faster heat absorption and fire knockdown capability. The Electric Fire Marshall system is activated by pressing one of 2 included momentary push buttons. A military grade actuator detonates the extinguisher, and is powered by an independent power supply, complete with battery strength and circuit continuity checks.

Features

• Smaller and lighter design than the previous Zero 2000 systems with increased levels of safety compared to competitors
• The fastest heat absorption and fire knock down capability available from a water based system
• 5 nozzle system for strategic coverage of the engine bay and cockpit reducing weight and complexity of the installation
• FIA Technical List 16 compliant

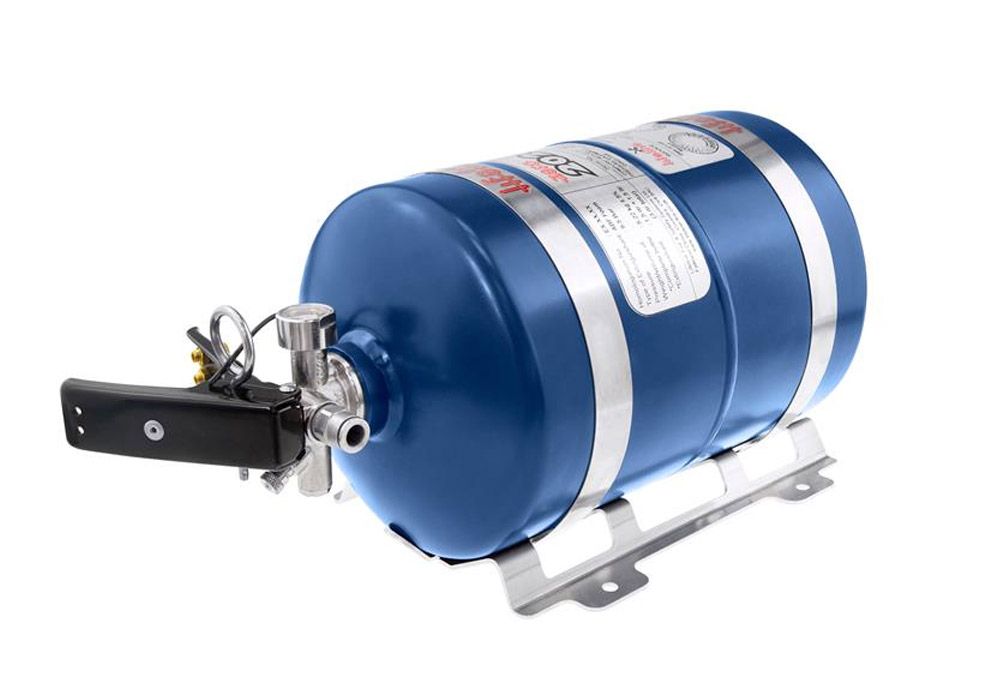

• Steel cylinder dimensions - 6.1in OD(155mm) x 13.5in Length Overall(342mm) at 11.5lbs(5.2kg)
• Covers a wide range of vehicles including Sports/GT cars, Formula/Prototype cars, and Rally cars

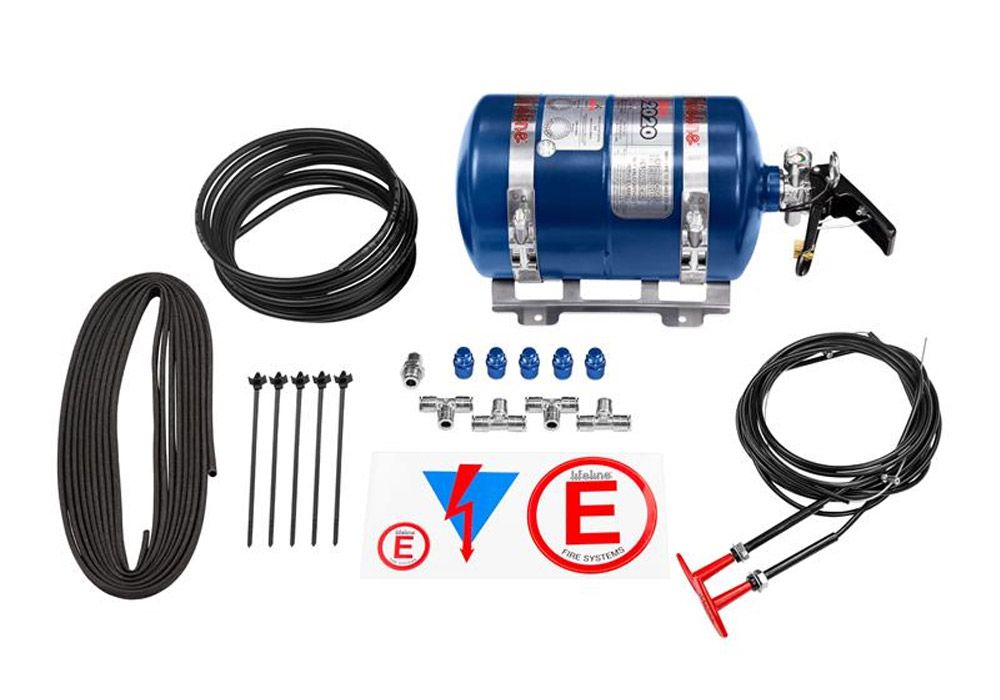

In The Box

• 3-Liter, Steel Bottle (filled & charged)
• (1) Power Pack - DIN Socket
• (1) Plug & Lead Assembly - Standard
• (2) Activation Switch
• (5) Misting Nozzles (Engine, Cockpit)
• (4) 8mm Equal-T Connectors
• 6m 8mm Decabon Tubing
• (1) Heatproof Overbraid, 6m
• (1) 8mm Bulkhead Fitting
• (1) Zero 2020 Brackets & Straps
• (1) Decal Pack
