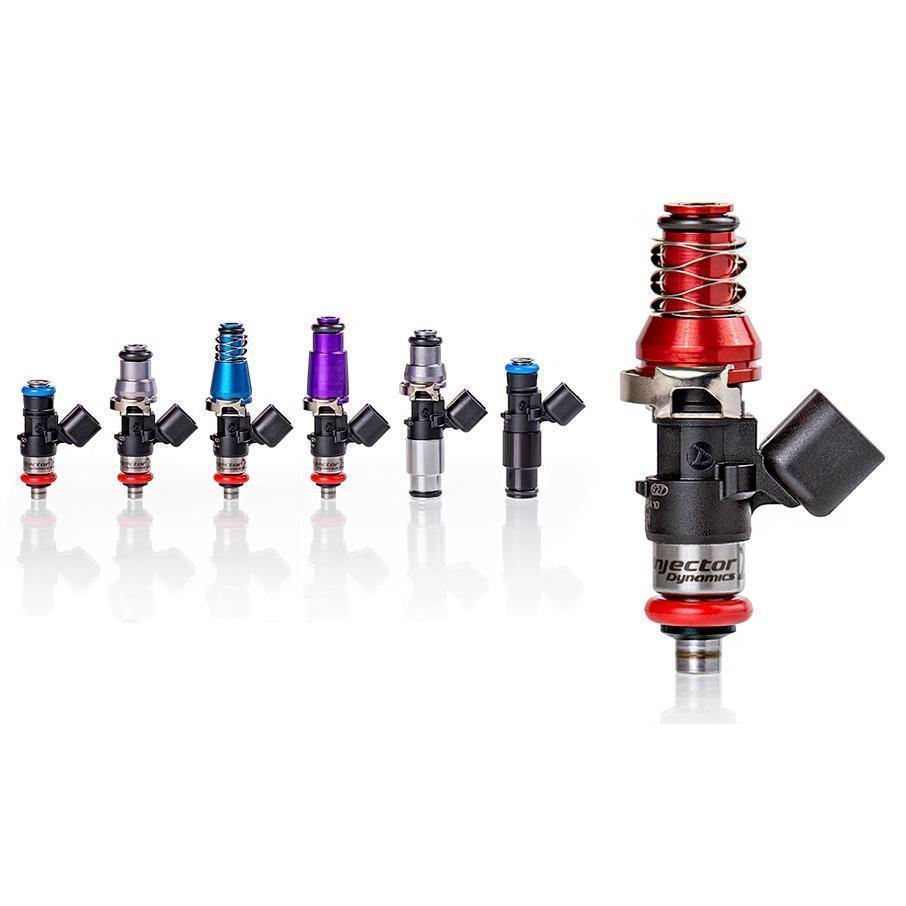

Injector Dynamics ID 2600 X Series

The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport.

The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.

The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.

The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.

Specifications

Nominal Flow Rate – 2600cc/min @ 3.0 Bar (43.5 psi)
Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
Electrical Connector – USCAR

Fitment

Universal		2600.34.14.14
		2600.34.14.15
		2600.48.11.14
		2600.48.11.WRX
		2600.48.11.F20
		2600.48.14.14
		2600.48.14.15
		2600.48.14.R35
		2600.48.14.14B
		2600.60.14.14
		2600.60.14.14-O
		2600.60.14.D
		2600.60.14.14B
		2600.60.11.14
		2600.60.11.14-O
		2600.60.11.D


Arctic Cat	1100 Turbo 09-16	2600.28.01.36.11.4
Audi	Audi 1.8L Turbo	2600.60.14.14B.4
	Audi 2.0L Turbo	2600.60.14.14B.4
	R8 2015+	2600.34.14.14.10
	Audi RS3/TTRS	2600.34.14.14.5
	Audi VR6 (12 valve)	2600.60.14.14B.6
	Audi VR6 (24 valve)	N/A


BMW	E30 M3 88-91	2600.60.14.14.4
	E36 M3 96-99	2600.60.14.14.6
	E46 M3 01-06	2600.48.14.14.6
	E90 / E92 / E93 M3 07+	2600.48.14.14.8
	M Coupe / M Roadster 98-00	2600.60.14.14.6
	540i / 740i	2600.60.14.14.8
	328 96-98	2600.60.14.14.6


Buick	Turbo Regal	2600.60.14.14.6
	Grand National	2600.60.14.14.6


Cadillac	CTS-V 09-14 (LSA)	2600.34.14.15.8


Can Am	Outlander ATV 08	2600.48.14.14.2


Chevrolet	LS3/LS7/L76/L92/L99	2600.34.14.15.8
	LS2	2600.48.14.15.8
	LS1/LS6	2600.60.14.14.8
	Camaro 93-96 (LT1)	2600.60.14.14.8
	Camaro 98-01 (LS1)	2600.60.14.14.8
	Camaro 10+ (LS3)	2600.34.14.15.8
	Camaro ZL1 (LSA)	2600.34.14.15.8
	C5 Corvette (incl Z06)	2600.60.14.14.8
	C6 Corvette	2600.34.14.15.8
	C6 Z06 (LS7)	2600.34.14.15.8
	C6 ZR1 (LS9)	2600.34.14.15.8
	Cobalt SS (super)	2600.60.14.14B.4


Dodge / Chrysler	Neon SRT-4	2600.48.14.14.4
	Caliber SRT-4	2600.48.14.14.4
	300C SRT-8	2600.48.14.14B.8
	Challenger SRT-8	2600.48.14.14B.8
	Magnum SRT-8	2600.48.14.14B.8
	Hellcat/Trackhawk/Demon	2600.48.14.14.8
	Viper 03-07	2600.60.14.14.10
	Ram SRT-10 04-06	2600.60.14.14.10
	Viper 08+	2600.48.14.14B.10


Ford	Focus ZX3	2600.60.14.14.4
	Focus SVT	2600.60.14.14.4
	Focus RS	2600.60.14.14.4
	Focus RS MK II-IV	2600.60.14.14.5
	SVT Lightning	2600.60.14.14.8
	F150 Harley Davidson	2600.60.14.14.8
	Mustang SVO	2600.60.14.14.4
	Mustang GT 88-96	2600.60.14.14.8
	Mustang GT 97-04	2600.60.14.14.8
	Mustang GT 05-10	2600.60.14.14.8
	Mustang GT 2011+ (includes GT350)	2600.60.14.14B.8
	Mustang Cobra 99-04	2600.60.14.14.8
	Mustang GT500 07-14	2600.48.14.14.8
	Mustang GT500 2020+	2600.60.14.14B.8
	Falcon GT and GS 5.0 – 2010+	2600.60.14.14.8-PU
	Falcon XR6T (FG)	2600.48.14.14B.6
	Falcon XR6T (BA and BF)	2600.60.14.14B.6
	SVT Raptor 2011-2014	2600.60.14.14.8
	Raptor 2017+	2600.34.14.14.6


Holden	Commodore VT (V6)	2600.60.14.14.6
	Commodore VTII (LS1)	2600.60.14.14.8
	Commodore VX (LS1)	2600.60.14.14.8
	Commodore VXII (V6)	2600.60.14.14.6
	Commodore VY (LS1)	2600.60.14.14.8
	Commodore VS/VY (SCV6)	2600.60.14.14.6
	Commodore VZ (LS2)	2600.48.14.15.8
	Commodore W427	2600.34.14.15.8
	Commodore E-HSV	2600.34.14.15.8
	Monaro (LS1)	2600.60.14.14.8
	Monaro (LS2)	2600.48.14.15.8


Honda/Acura	Accord 92-95	2600.60.11.14.4
	Accord 96-02	2600.60.11.14.4
	Accord 03-07	2600.48.11.F20.6
	Civic 88-95	2600.60.11.14.4
	Civic 96-00	2600.60.11.14.4
	Civic 02-05 Si	2600.48.14.14.4
	Civic 06-11	2600.48.14.14.4
	Odyssey 02-04	2600.48.11.F20.6
	Prelude 92-96	2600.60.11.14.4
	Prelude 97-01	2600.60.11.14.4
	S2000 00-05	2600.48.11.F20.4
	S2000 06-09	2600.48.14.14.4
	CL 01-03	2600.48.11.F20.6
	Integra 90-95	2600.60.11.14.4
	Integra 96-01	2600.60.11.14.4
	NSX 91-95	2600.60.11.14-O.6
	NSX 96-05	2600.60.11.14-O.6
	RSX 02-09	2600.48.14.14.4
	TL 01-03	2600.48.11.F20.6
	TSX 04-10	2600.48.14.14.4


Honda Powersports	CBR1000RR 2004-2007	2600.07.01.48.11.4
	CBR1000RR 2008+	2600.07.02.34.11.4


Hyundai	Genesis 2.0t 09-12	2600.48.14.R35.4
	Genesis 2.0t 13-14	2600.60.14.14.4
	Genesis V6 09+	2600.34.14.14.6


Infiniti	G35	2600.48.14.14.6
	G37	2600.48.14.R35.6
	G20 91-96 (11mm)	2600.60.11.14.4
	G20 91-96 (14mm)	2600.60.14.14.4
	G20 99-02 (11mm)	2600.60.11.14.4
	G20 99-02 (14mm)	2600.60.14.14.4


Kawasaki	ZX14	2600.48.11.D.4


Lamborghini	Gallardo 04-13	2600.48.14.14.10
	Huracan	2600.34.14.14.10


Lexus	GS300	2600.60.11.D.6
	IS300	2600.60.11.D.6
	SC300	2600.60.11.D.6
	SC400	2600.60.11.D.8


Lotus	Exige/Elise 05+	2600.30.01.60.11.4


Mazda	Miata 90-05	2600.11.02.60.11.4
	Mazdaspeed Miata	2600.11.02.60.11.4
	Miata 06-14	2600.60.14.14B.4
	RX-7 79-84 (11mm)	2600.11.03.60.11.2
	RX-7 79-84 (14mm)	2600.11.06.60.14.2
	RX-7 85-86 (11mm)	2600.11.03.60.11.2
	RX-7 85-86 (14mm)	2600.11.06.60.14.2
	RX-7 87-92 (11mm)	2600.11.03.60.11.2
	RX-7 87-92 (14mm)	2600.11.06.60.14.2
	RX-7 93-95 (11mm)	2600.11.03.60.11.2
	RX-7 93-95 (14mm)	2600.11.06.60.14.2
	RX-8 03-11 (secondaries only)	2600.60.11.D.2


McLaren	MP4-12C	2600.34.14.14.8
	570S	2600.34.14.14.8
	600LT	2600.34.14.14.8
	650S	2600.34.14.14.8
	675LT	2600.34.14.14.8
	P1	2600.34.14.14.8
	720S	2600.34.14.14.16
	Senna	2600.34.14.14.16


Mitsubishi	Evo III – IX	2600.60.11.D.4
	Evo X	2600.48.14.14B.4
	Eclipse GST/GSX	2600.60.11.D.4
	Galant VR4	2600.60.11.D.4
	3000GT VR4	2600.60.11.D.6


Nissan	300ZX TT (90-96) 11mm	2600.60.11.14.6
	300ZX TT (90-96) 14mm	2600.60.14.14.6
	350Z	2600.48.14.14.6
	370Z	2600.48.14.R35.6
	GTR-R32, R33, R34 (11mm)	2600.60.11.D.6
	GTR-R32, R33, R34 (14mm)	2600.60.14.D.6
	GTR (R35)	2600.48.14.R35.6
	GTR (R35) FOR V1 T1 Rails	2600.60.14.14-O.6
	240SX-S13/S14/S15 (11mm)	2600.60.11.14.4
	240SX-S13/S14/S15 (14mm)	2600.60.14.14.4
	SR20DET FWD (11mm)	2600.60.11.14.4
	SR20DET FWD (14mm)	2600.60.14.14.4
	Patrol	2600.48.14.14.6
	Sentra SE-R Spec V 00-06	2600.48.14.14.4
	Titan 04+	2600.48.14.14.8


Pontiac	Firebird (93-97) LT1	2600.60.14.14.8
	Firebird (98-02) LS1	2600.60.14.14.8
	Trans-Am (93-97) LT1	2600.60.14.14.8
	Trans-Am (98-02) LS1	2600.60.14.14.8
	Turbo T/A (89 Anniv.)	2600.60.14.14.6
	GTO (2004) LS1	2600.60.14.14.8
	GTO (2005-2006) LS2	2600.48.14.15.8
	G8 GT	2600.34.14.15.8
	G8 GXP	2600.34.14.15.8


Porsche	996/997.1	2600.60.14.14.6
	996/997.1 TT	2600.48.14.14.6
	993/911 84-98 (non turbo)	2600.60.14.14.6


Saturn	Ion Redline	2600.60.14.14.4
	Sky (Non turbo)	2600.60.14.14.4
	Sky Redline (turbo)	N/A


Scion	tC (05-10) 2.4L	2600.17.01.60.11.4
	xB (01-15)	2600.60.11.D.4
	FR-S (2013+)	2600.18.04.36.11.4


Ski-Doo	1200 E-Tec 09-12	2600.48.14.14.3


Subaru	STi (04-06)	2600.18.01.48.14.4
	WRX (02-14) / STi (07-17)	2600.48.11.WRX.4
	Legacy GT / Forester XT (07-11)	2600.48.11.WRX.4
	BRZ (2013+)	2600.18.04.36.11.4


Suzuki	Hayabusa 99-07	2600.19.01.48.11.4
	Hayabusa Gen 2 – 8 inj	2600.HTP.34.11.4


Toyota	Corolla GTS (83-87) 4AGE	2600.60.11.D.4
	Corolla CE, S, LE (03-04)	2600.60.11.D.4
	Matrix (01-03)	2600.60.11.D.4
	MR-2 Turbo (90-96) 3S-GTE (11mm)	2600.60.11.14.4
	MR-2 Turbo (90-96) 3S-GTE (14mm)	2600.60.14.14.4
	MR-2 N/A (90-96) 5SFE	2600.60.11.D.4
	MR-2 Spyder (00-05) 1ZZ-FE	N/A
	Supra Turbo (87.5-92) 7M-GTE	2600.60.11.D.6
	Supra Turbo (93-98) 2JZ-GTE (11mm)	2600.60.11.14.6
	Supra Turbo (93-98) 2JZ-GTE (14mm)	2600.60.14.14.6
	Supra NA (93-98) 2JZ-GE	2600.60.11.D.6
	Celica All-Trac (89-99) 3S-GTE (11mm)	2600.60.11.14.4
	Celica All-Trac (89-99) 3S-GTE (14mm)	2600.60.14.14.4
	Celica GT (00-05) 1ZZ-FE	2600.60.11.D.4
	Celica GTS (00-05) 2ZZ-GE	2600.30.01.60.11.4
	Landcruiser	2600.60.11.D.6
	FJ Cruiser / 4Runner / Tundra	2600.60.14.D.6


Volkswagen	VW 1.8T	2600.60.14.14B.4
	VW 2.0T	2600.60.14.14B.4
	VW VR6 (12v)	2600.60.14.14B.6
	VW VR6 (24V)	N/A


Yamaha	FX-SHO/FZ Watercraft	2600.27.01.48.11.4
	Apex Snowmobile 06-12	2600.48.11.14.4
	Nytro Snowmobile 08-12	2600.48.11.14.3
	YXZ1000 UTV	2600.27.02.34.11.3
