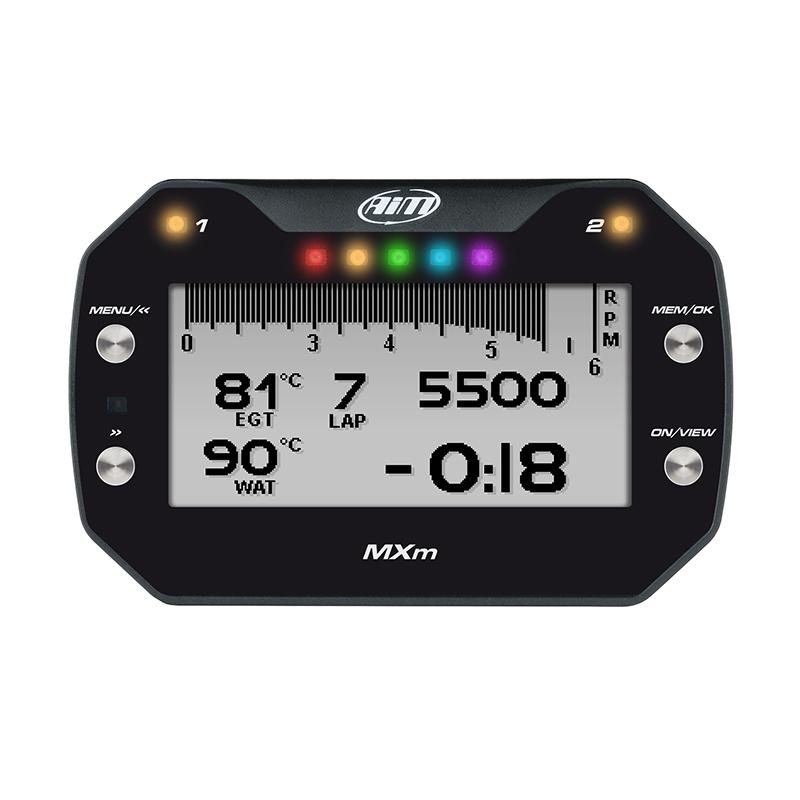

AIM MXm Dash Data Logger

AIM MXm Dash Data Logger

$2,299.00
$2,299.00
Sale Sold out
Shipping calculated at checkout.

AIM MXm Dash Data Logger

MXM provides the user with information received from several different data sources such as the internal GPS, the ECU, and the built-in inertial platform, just to name a few. For the professional racer, the MXM can be fitted to the Lambda controller and the SmartyCam HD camera for a more involved experience.

Included

  • MXm
  • USB cable
  • 37 pins connector harness
  • DTP 06-4S EE01 4 pins connector with pins
  • Race Studio 3 software
  • User manual

A wide range of data sources

MXm samples data coming from your ECU, the internal GPS, accelerometer and gyro, analog/digital inputs and predefined math channels.

Integrated Shift Lights and Alarms

The Aim MXm features a 5 LED shift light array. Choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LED’s which you can choose the conditions which turn them on/off, their colour, select a solid alarm – or flashing one – and the flashing frequency.

MXm Integrated shift lights


Sharp Liquid Crystal

MXm features a high contrast LCD display, with an outstanding black to white ratio. The wide 268 x 128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the back-light at optimum brightness levels.

Aim MXm Sharp Liquid Crystal Display

Aim MXm features a wide 268×128 pixel graphical display. The screen can be backlit in one of the seven available colours and the incorporated light sensor makes brightness and contrast ideal in all light conditions.

MXm seven available colors

Data Recall

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.

Choose Your Own Data Layout

With the Aim MXm Dash, you can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.

Aim MXm Data recall

Wi-Fi Connectivity

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection so no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.

Aim MXm Wifi

Aim MXm Dash Connection Examples

MXm Connection Examples

TC Hub

It adds 4 K thermocouples.

LCU-One Lambda Controller

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

Memory Module

Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.
